Four-Prong Drive Centre for Scroll Chucks
Turn spindles on your lathe without removing the scroll chuck.

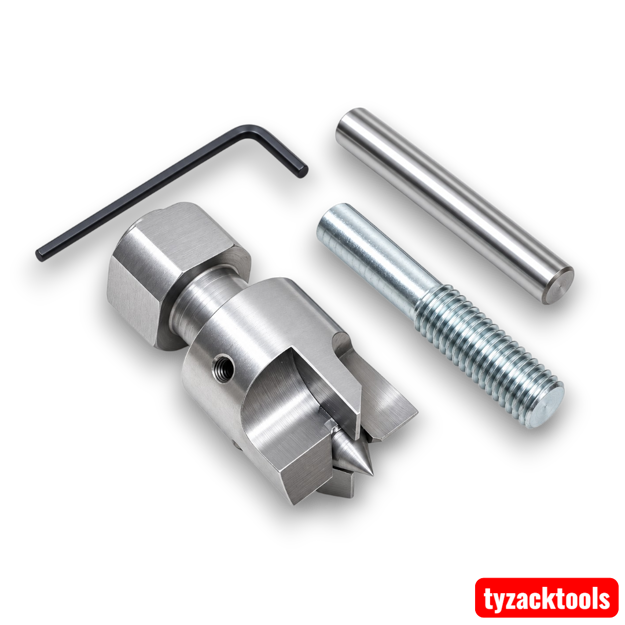

This four-prong drive centre is designed to lock securely into the centre of your scroll chuck using standard dovetail jaws, allowing you to turn spindles without removing the chuck from your lathe.
Featuring a 25mm (1") four-prong drive centre and an adjustable, removable centre point, it offers flexibility for different turning applications.
Key Features
- Four-prong drive centre for spindle turning
- Fits standard dovetail chuck jaws
- Adjustable and removable centre point
- Compatible with interchangeable guide pins
- Designed for use with a wide range of scroll chucks
| Specification | Measurement |
|---|
| Four-Prong Diameter |
25mm (1") |
| Overall Length |
55mm (2") |
| Chuck Insert End Diameter |
19mm (3/4") |
| Jaw Clamping Channel Width |
9mm (3/8") |
Interchangeable Guide Pins
The drive centre features a removable centre point that can be replaced with either:
- 8mm Diameter Plain Guide Pin
- Threaded Guide Pin
This interchangeable design provides additional versatility for different spindle-turning requirements.
Chuck Compatibility
Compatible with:
- Charnwood W836
- Charnwood W840
- Viper 2
- Viper 3
- Viper 5
- Nexus 3
- Most other makes of scroll chucks
