The Tyzacktool Edge and Centre Finder Set is a precision tool used in machining applications, particularly with milling or drilling machines, to accurately locate the center of the spindle over a specific point, scribed line, or feature on a workpiece.
Key Specifications
The details provided in the part number and description indicate the following:
-
Shank Diameter: 3/8" & 1/2" (This is the diameter of the part that clamps into the machine's chuck, collet, or tool holder).
-
Tip Diameter: 0.3750", 0.5000" (This is the precise diameter of the contact tip used for measurement).
-
End Type: Mix (It has one functional end for locating/finding a center or edge).
-
Type: Center Finder (Sometimes also called a Wiggler or Edge Finder, depending on the contact style).

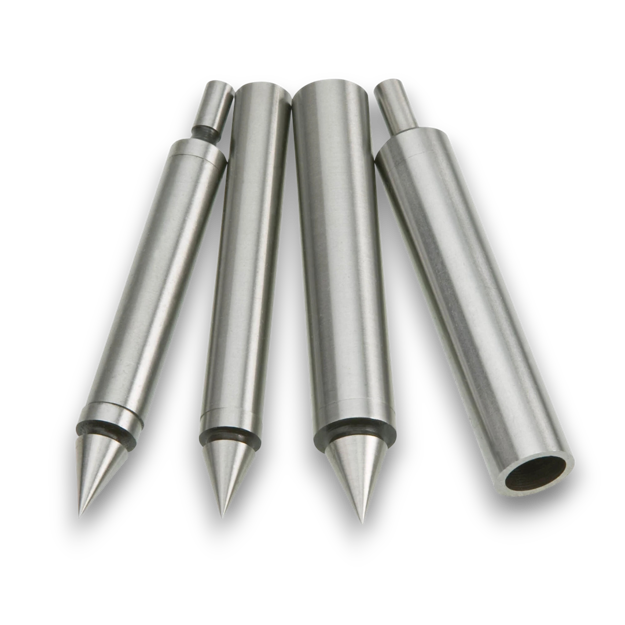

Set Inc:
- Combination Edge and Centre Finder: 3/8" Shank .2000" & .3750" Tip Diameter
- Centre Finder Singe End: 3/8" Shank .3750" Tip Diameter
- Centre Finder Singe End: 1/2" Shank .5000" Tip Diameter
- Edge Finder Singe End: 1/2" Shank 2000" Tip Diameter
