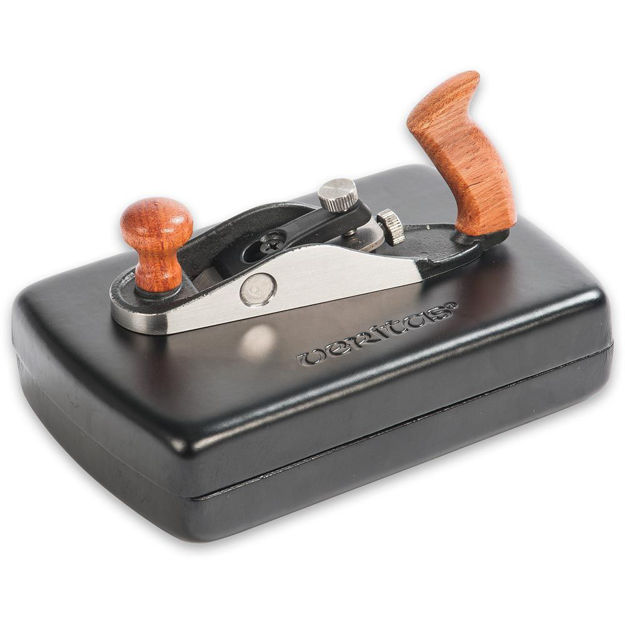

Veritas Miniature Bench Plane - 103550 05P82.22

Fully functional 1/3 scale Veritas Bevel-Up Smoothing Plane
£63.20
£66.50
Manufacturer: Veritas
SKU: 05P82.22
+ -

Key Features

  • Fully functional 1/3 scale Veritas Bevel-Up Smoothing Plane
  • Only 90mm long and 20.5mm wide
  • Fitted with A2 tool steel blade
  • Norris-style adjuster for micro precision depth of cut
  • Investment-cast stainless steel body
  • CNC machined sides and finely ground sole
  • Front knob and rear tote are hardwood
  • Supplied in French-fitted leatherette case



Description

This miniature tool is a fully functional 1/3 scale version of the Veritas Small Bevel-Up Smoothing Plane. Overall, it measures 90mm (3.1/2") long and 20.5mm (13/16") wide. The A2 blade is 16mm (5/8") wide and 1.5mm (0.06") thick. The 25° bevel angle, together with the 13° bed angle, provides an effective cutting angle of 38°. A stainless-steel Norris-style adjuster lets you set the blade with micro precision. This plane is easily capable of taking a fine shaving. The investment-cast stainless steel body has a fixed mouth, machined sides and a ground sole. The front knob and rear tote are hardwood. The plane weighs about 64g (2.1/4oz). To complement this fine quality tool, it comes in a French-fitted embossed leatherette case.
