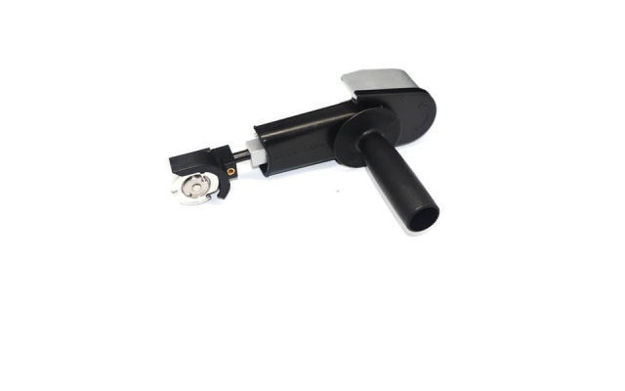

Basic kit for beginners and wood carvers.
*Only 2" Blades can be used.
Includes :
• One - 2" circular cutter 6mm
• 200Extension Performance
Features :
• Smooth Carving with Sharp Carbide
• Detail & Sculpting Performance
• Vibration Reduction
*Angle grinder is not included
Please check your "Spindle size" and "angle grinder".
TECHNICAL SPECIFICATIONS
• Model : MP21-2-B
• Max. Blade Diameter : 45 mm
• Max. Carving Depth : 10 mm @ 2” Blades
• Max. RPM : 16,500 rpm @ extension spindle
• Power : 630 ~750 Watt
• Disc Bore Size: 9.5 mm
• Weight : 0.7 Kg (without angle grinder)
• Overall Length : 200 mm
• Working Width : 10 mm @ 2” Blades
• Blade Width : 6, 8 mm (option)
• Number Of Teeth : 3 EA @ 2” Blades
|
|
① Changeable System
- Basic diameter : 45 mm (½ size of original 4” angle grinder diameter)
- Various shape & Size wheel : Triangle, Square, Round and Sanding.
- Big head change : 3" Multi Cutter head can be installed
② Replaceable Tungsten Carbide
- Easy to change when worn
- Circular type for carving any multiple direction
③ Safety Cover
- Prevention of kick back
- Prevention of sawdust flying
④ Adjustable Body
- 90˚ to 180˚ Free angle change system
- Basic 160 mm Length
- Extension to 270 - 348 mm (with connection tools)
⑤ Timing belt
- Vibration Reduction
⑥ Handle
- Control kick back safely
- Two hands Grip System
|
|
|
Belt Cutter – Basic Kit Contents
① Belt cutter Housing & 2" Circular cutter 6mm
② Body & Safety Cover
③ Wide Handle
④ Drive Gear
⑤ Adapter Ring 42.50 & 44.00
⑥ Star Wrench & L Wrench
⑦ Spanner
⑧ Timing Belt 200 XL
|
- Please read and follow all safety instructions carefully. Please keep the manual for future reference.
- When operation, always wear safety equipment such as face masks and safety goggle.
- Always secure the workpiece securely when working.
- Make sure that the grinder switch is off before plugging in the power cord.
- Be careful not to touch the cutter blade. Serious injury may result.
- Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.
- When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.
- After operation, turn off the switch and set it down when The remaining rotation stop completely.
- Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.
- Please remove the stone, sand and other material beforehand to use. If not, you may get blades damage.
- Inspect and tighten the bolts of each part before operation.
- After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.
- If the cutter blade or belt is worn out, replace it with a new one.
