Manpa 2" Belt Cutter - Master

① Changeable System - Basic diameter : 45 mm (½ size of original 4” angle grinder diameter) - Various shape & Size wheel : Triangle, Square, Round and Sanding. - Big head change : 3" Multi Cutter head can be installed ② Replaceable Tungsten Carbide - Easy to change when worn - Circular type for carving any multiple direction ③ Safety Cover - Prevention of kick back  - Prevention of sawdust flying ④ Adjustable Body  - 90˚ to 180˚ Free angle change system - Basic 160 mm Length - Extension to 270 - 348 mm (with connection tools) ⑤ Timing belt - Vibration Reduction  ⑥ Handle - Control kick back safely - Two hands Grip System

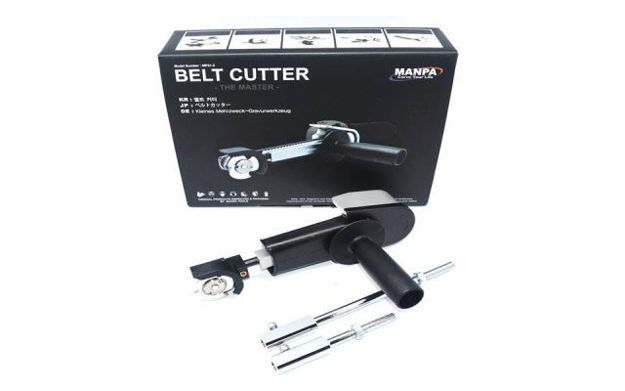

Belt Cutter – Master Kit Contents ​ ① Belt cutter Housing & 2" Circular cutter 6mm ② Body & Safety Cover ③ Wide Handle ④ Drive Gear  ⑤ Adapter Ring 42.50 & 44.00 ⑥ Star Wrench & L Wrench ⑦ Spanner ​⑧ Timing Belt 200, 270, 348 XL ⑨ 2 Extension Tools (270, 348 mm)

 - Please read and follow all safety instructions carefully. Please keep the manual for future reference.

 -  When operation, always wear safety equipment such as face masks and safety goggle.

 - Always secure the workpiece securely when working.

 - Make sure that the grinder switch is off before plugging in the power cord.

 - Be careful not to touch the cutter blade. Serious injury may result.

 - Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.

 - When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.

 - After operation, turn off the switch and set it down when The remaining rotation stop completely.

 - Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.

 - Please remove the stone, sand and other material beforehand to use. If not, you may get blades damage.

​- Inspect and tighten the bolts of each part before operation.

- After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.

​- If the cutter blade or belt is worn out, replace it with a new one.
