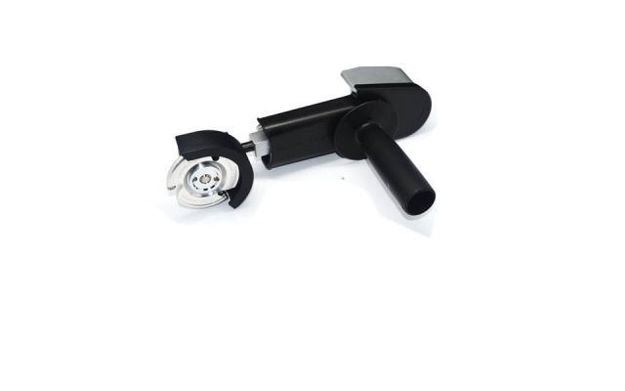

Manpa 3" Multi Cutter - Basic

Be the first to review this product

£235.20

Manufacturer: Manpa

SKU: m5

Qty:

+ -

Basic kit for beginners and wood carvers.
3" & 4" Blades can be used.

Includes :
• One - 3" Circular cutter 8mm
• 200 Extension Performance

Features :
• Smooth Carving with Sharp Carbide
• Detail & Sculpting Performance
• Vibration Reduction

*Angle grinder is not included
Please check your "Spindle size" and "angle grinder"

TECHNICAL SPECIFICATIONS

• Model :   MP21-3-B
• Max. Blade Diameter :   100 mm @ 4” Blades
• Max. Carving Depth :   35 mm @ 4” Blades
• Max. RPM :   15,000 rpm @ extension spindle
• Power :   630 ~750 Watt

• Disc Bore size:   16.03 mm
• Weight :   0.8 Kg (without angle grinder)
• Overall Length :   200 mm
• Working Width :   20 mm @ 3” Blades
• Blade Width :   8 mm
• Number Of Teeth :   3 EA @ 3” Blades

① Changeable System
- Basic diameter : 70 mm (¾ size of original 4” angle grinder diameter)
- Various shape & Size wheel : Triangle, Square, Round and Sanding, 3" to 4" wheel
- Small head change : 2" Belt Cutter head can be installed

② Replaceable Tungsten Carbide
- Easy to change when worn
- Circular type for carving any multiple direction

③ Safety Cover
- Prevention of kick back
- Prevention of sawdust flying

④ Adjustable Body
- 90˚ to 180˚ Free angle change system
- Basic 160 mm Length
- Extension to 270 - 348 mm (with connection tools)

⑤ Timing belt
- Vibration Reduction

⑥ Handle
- Control kick back safely
- Two hands Grip System

Multi Cutter – Basic Kit Contents

① Multi cutter Housing & 3" Circular Cutter 8mm
② Body & Safety Cover
③ Wide Handle
④ 4" Safety Cover
⑤ Drive Gear
⑥ Adapter Ring 42.50 & 44.00
⑦ Torx Wrench & L Wrench
⑧ Spanner
⑨ Timing Belt 200 XL

- Please read and follow all safety instructions carefully. Please keep the manual for future reference.

- When operation, always wear safety equipment such as face masks and safety goggle.

- Always secure the workpiece securely when working.

- Make sure that the grinder switch is off before plugging in the power cord.

- Be careful not to touch the cutter blade. Serious injury may result.

- Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.

- When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.

- After operation, turn off the switch and set it down when The remaining rotation stop completely.

- Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.

- Please remove the stone, sand and other material beforehand to use. If not, you may get blades damage.

- Inspect and tighten the bolts of each part before operation.

- After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.

- If the cutter blade or belt is worn out, replace it with a new one.
