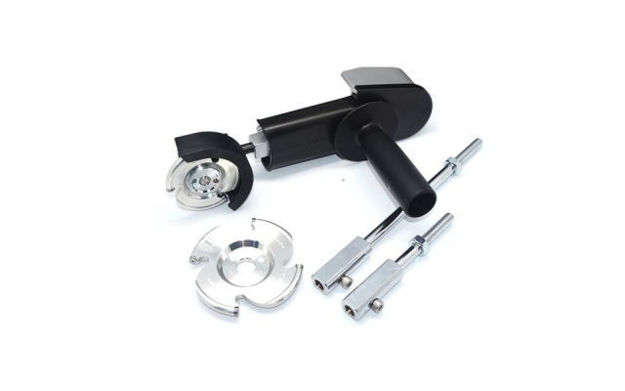

Manpa 3" Multi Cutter - Master

£307.20
Manufacturer: Manpa
SKU: m6
+ -

Highly Recommended for Pro Carvers.
3" & 4" Blades can be used.

Includes :
​• One - 3" Circular cutter 8mm
• One - 4" Circular cutter 8mm
• 200 - 270 - 348 Extension

​​Features :
• Smooth Carving with Sharp Carbide
• Detail & Sculpting Performance
• Vibration Reduction

*Angle grinder is not included
Please check your "Spindle size" and "angle grinder".



TECHNICAL SPECIFICATIONS

​• Model :   MP21-3-M
​• ​Max. Blade Diameter :   100 mm @ 4” Blades​
​• Max. Carving Depth :   35 mm @ 4” Blades
​• Max. RPM :   15,000 rpm @ extension spindle
​• Power :   630 ~750 Watt

​• Disc Bore Size:   16.03 mm
​• Weight :   0.8 Kg (without angle grinder)
​• Overall Length :   200, 270, 348 mm
​• Working Width :   35 mm @ 4” Blades
​• Blade Width :   8 mm
​• Number Of Teeth :   4 EA @ 4” Blades





① Changeable System
- Basic diameter : 70 mm (¾ size of original 4” angle grinder diameter)
- Various shape & Size wheel : Triangle, Square, Round and Sanding, 3" to 4" wheel
- Small head change : 2" Belt Cutter head can be installed

② Replaceable Tungsten Carbide
- Easy to change when worn
- Circular type for carving any multiple direction

③ Safety Cover
- Prevention of kick back
- Prevention of sawdust flying

④ Adjustable Body
- 90˚ to 180˚ Free angle change system
- Basic 160 mm Length
- Extension to 270 - 348 mm (with connection tools)

⑤ Timing belt
- Vibration Reduction

⑥ Handle
- Control kick back safely
- Two hands Grip System



Multi Cutter – Master Kit Contents

① Multi cutter Housing & 3" Circular Cutter 8mm
② Body & Safety Cover
③ Wide Handle
④ 4" Safety Cover
⑤ Drive Gear
⑥ Adapter Ring 42.50 & 44.00
⑦ Torx Wrench & L Wrench
​⑧ Spanner
⑨ Timing Belt 200, 270, 348 XL
⑩ 4" Circular Cutter 8mm
⑪ 2 Extension Tools (270, 348 mm)



 - Please read and follow all safety instructions carefully. Please keep the manual for future reference.

 -  When operation, always wear safety equipment such as face masks and safety goggle.

 - Always secure the workpiece securely when working.

 - Make sure that the grinder switch is off before plugging in the power cord.

 - Be careful not to touch the cutter blade. Serious injury may result.

 - Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.

 - When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.

 - After operation, turn off the switch and set it down when The remaining rotation stop completely.

 - Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.

 - Please remove the stone, sand and other material beforehand to use. If not, you may get blades damage.



​- Inspect and tighten the bolts of each part before operation.

- After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.

​- If the cutter blade or belt is worn out, replace it with a new one.
