- 45 ° Use for checking, drawing, and scribing.
- 45 ° 90 ° check, wire drawing, stop type ruler used for scribes
- 45 ° 90 ° confirmation, wire drawing, scribing work can be done easily.
- With scale, convenient to measure dimensions.

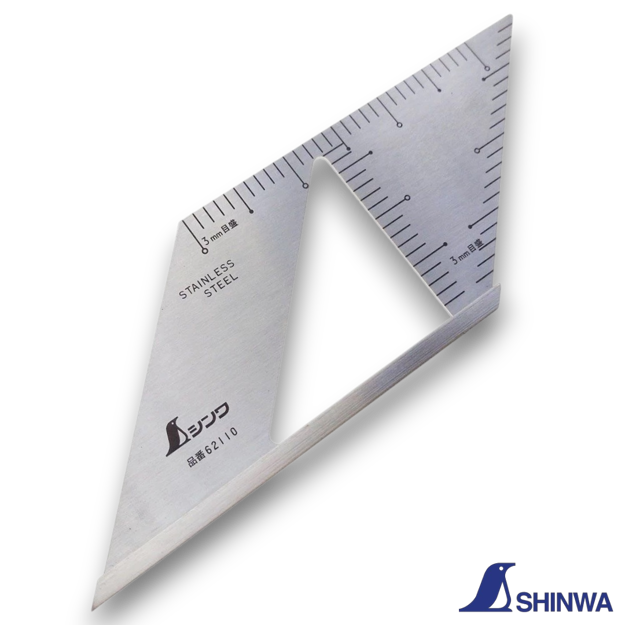

Machined from stainless steel this precise mitre square has a 13mm(1/2") wide by 115mm(4.1/2") long base allowing it to be hooked against the edge of stock when marking mitres, or stood upright for accurately setting machine fences, blades and tables.
The "Hook" Base: Unlike Western squares that have a bulky handle, the 62110 has a thin, 5mm thick foot. This allows it to hook onto the edge of a board without tipping, or sit flat on a machine table to check the squareness of a fence or blade.
Scribing Window: The center of the blade contains a triangular cut-out. This is not just for weight reduction; it allows you to see your layout marks from the "other" side and can be used to scribe parallel lines.
Integrated Scale: The markings are etched and filled, typically in 1mm increments. The 90° edge scale usually starts from the base, while the 45° edge is often used for depth or vertical height layout.
