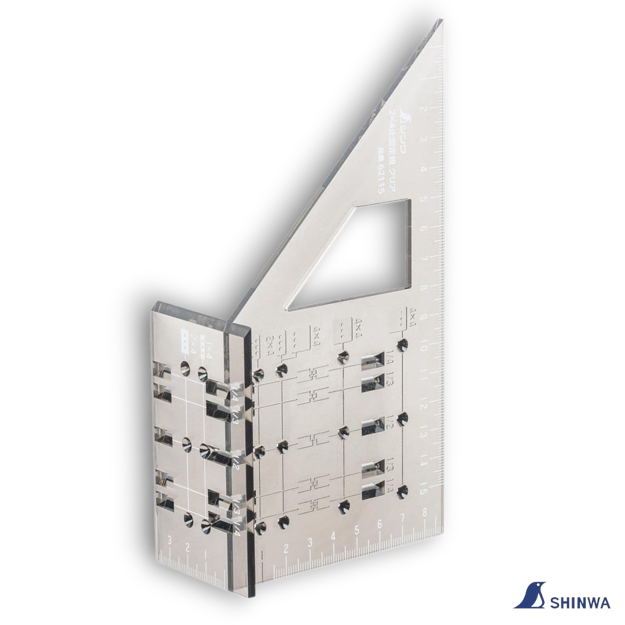

Shinwa Japanese Square Mitre Marking Saddle Layout Miter Rule 3D 45° 90° - 62115

Made from durable polycarbonate
£8.58
Manufacturer: Shinwa
SKU: 62115
+ -

Key Features

  • Made from durable polycarbonate
  • For marking out or checking 90° and 45° angles



Description

Also with this angle you can reliably mark lines around edges without slipping. The material polycarbonate is transparent, which allows better control of the markings.

Functions of oblong and round marking holes

The manufacturer SHINWA developed this miter rule especially for markings on "2 x 4 Lumber". Here you can see the orientation of this product to the American market. We are talking about rough sawn lumber with the cross section of 2 x 4 inches (50, 8 x 101.6 mm). After drying and planing, about 1.5 x 3.5 inches (about 38 x 89 mm) remains. So, the two angled boards are exactly aligned with squared lumber of these dimensions, measuring 38 x 89 mm.

What do the elongated marking holes labeled 1/4 1/3 and 1/2 mean? Without further measuring, overleaves and two finger joints of different sizes can be marked in the simplest way.



Miter Rule 3D 45° 90° Two-by-Four Clear (made of polycarbonate)



The round marking holes allow screws to be placed accurately when the timbers are joined with screws only rather than traditional timber joints.

Planed squared lumber of these dimensions is hard to find in Europe. Even if you think away these very special additional features, this miter rule made of transparent material is a good choice for a variety of applications.
